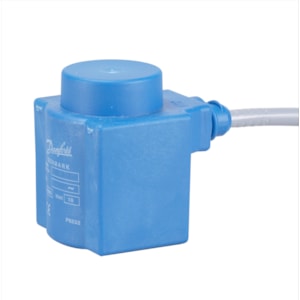

Cuộn điện từ BF230AS - C/N 018F6251

Gross weight

0.354 Kilogram

Net weight

0.297 Kilogram

Volume

0.86 Liter

EAN

5702428024815

Type

BF230AS

Product group

Solenoid valves

Product Name Description

Solenoid coil

Actuator size

13.5 mm

Ambient temperature range [°C] [max]

80 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

175 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

LLC CDC TYSK

Cable diameter [mm]

6.6 mm

Cable length [in]

40 in

Cable length [m]

1 m

China RoHS compliance

Yes

Coil connection

Cable

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Compliance

EN 60730-1

Conductor area [mm2]

3 x 0.75 mm2

Contain batteries

No

Duty rating

Continuous

Electrical connection

Cable

Electrical connector

3 core cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Frequency [Hz]

50 Hz

Identical product

018F8201

Packing format

Multi pack

Parts Program name

EV210B ; EV212B ; EV220B 15 – 50 ; EV220B 6 – 22 ; EV220B 65 – 100 ; EV222B ; EV224B ; EV227B ; EV250B ; EV251B

Power consumption 50Hz [VA]

22 VA

Power consumption [W] 50Hz

12 W

Product accessories

Solenoid coil accessories

Quantity per packing format

24 pc

REACH Candidate List substances

No

Rel. Humidity [% RH] [max]

100 %

Rel. Humidity [% RH] [min]

0 %

Serviceable

No

Spare part number

018F6251

Supply voltage 50Hz Max [V]

230 V

Supply voltage 50Hz Min [V]

220 V

Supply voltage [V] AC [max]

230 V

Supply voltage [V] AC [min]

220 V

Type designation

BF230AS
