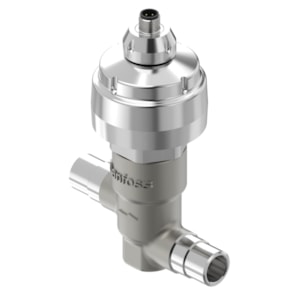

VAN ĐIỀU CHỈNH ĐIỆN DANFOSS CCMT 8 - C/N 027H7202

Mã sản phẩm: 027H7202

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN ĐIỀU CHỈNH ĐIỆN DANFOSS CCMT 8 - C/N 027H7202

Product details

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC EURO-TYSK; UL
China RoHS compliance	Out of scope
Connection Solder size [in]	5/8 in
Connection standard	EN10220
Connection type	Solder, ODF
Connection Weld size [in]	1/2 in
Contain batteries	No
Cv value [gal/min]	0.928 gal/min
Diff.press.setting range [bar]	90 bar
Diff.press.setting range [psi]	1305 psi
EU RoHS compliance	Out of scope
Kv value [m³/h]	0.928 m³/h
Max. Working Pressure [bar]	140 bar
Max. Working Pressure [psig]	2030 psig
MaxOPD [bar]	90 bar
MaxOPD [psig]	1305 psig
Packing format	Single pack
Product accessories	Electric valve accessories
Product description	Electric Expansion Valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf; R134a; R410A; R744
SCIP dossier no.	1b44dca2-c37c-46bc-ac76-7c2c62b348a3
SCIP dossier product name	CCMT
Serviceable	Electric valve spare parts
Temperature range [°C] [max]	60 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	140 °F
Temperature range [°F] [min]	-40 °F
UL approved refrigerants	R134a; R744
UL evaluated	Yes
