VAN KIỂM TRA DANFOSS NRV 10s H - C/N 020B4300

Mã sản phẩm: 020B4300

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

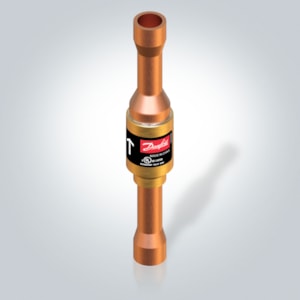

VAN KIỂM TRA DANFOSS NRV 10s H - C/N 020B4300

Product details

Approval	C UL US LISTED
Body material	Brass
China RoHS compliance	Yes with exemptions
Connection material	Copper
Contain batteries	No
Cv value [gal/min]	1.04 gal/min
Design	Piston
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Single-flow
Flow direction indicator	On product label
Fluid Group	2
Inlet connection type	Solder, ODF
Inlet size [mm]	10 mm
Kv value [m³/h]	0.9 m³/h
Max. Working Pressure [bar]	90 bar
Max. Working Pressure [psig]	1305 psig
Min. Pressure drop [bar]	1.1 bar
Min. Pressure drop [psi]	16 psi
MinODP [bar]	0.4 bar
MinODP [psi]	5.8 psi
Outlet connection type	Solder, ODF
Outlet size [mm]	10 mm
Packing format	Multi pack
PED category	Art. 4, par. 3
Quantity per packing format	25 pc
Rated cap cond, Hot gas [IMP]	tcond=86 °F; tdisc=176 °F; tevap=14 °F; thotgas=140 °F; tsub=9 °F
Rated cap cond, Hot gas [SI]	tcond=30 °C; tdisc=80 °C; tevap=-10 °C; thotgas=60 °C; tsub=5K
Rated cap cond, Liq. cap [IMP]	tcond=86 °F; tevap=14 °F; tsub=9 °F
Rated cap cond, Liq. cap [SI]	tcond=30 °C; tevap=-10 °C; tsub=5K
Refrigerants	R744
Temperature range [°C] [max]	140 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	285 °F
Temperature range [°F] [min]	-58 °F
UL approval file name	REFRIGERANT VALVE 53R0
UL approved refrigerants	R744
UL evaluated	Yes
