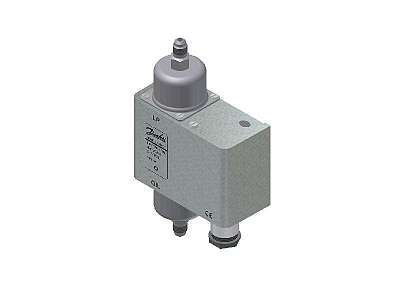

CÔNG TẮC ÁP SUẤT DANFOSS MP55 - C/N 060B029966

CHARACTERISTIC

VALUE

TYPE CODE

MP55

WEIGHT

0.618 Kg

ADJUSTMENT

Cut out for falling pressure

AMBIENT TEMP. NOTE

Bellows max 100 °C/212 °F

AMBIENT TEMP. RANGE

-40 - 60 °C

AMBIENT TEMP. RANGE

-40 - 140 °F

APPROVAL

CCC, CE, EAC, GL, LVD, RINA, RoHS, RoHS China, TYSK

CONTACT DIFF.

0,20 bar

CONTACT FUNCTION

SPDT

CONTACT RATING

AC15=0.1 A, 250 V

CONTACT RATING

DC13=12 W, 125 V

DIFF. RANGE

0,30 - 4,50 bar

DIFF. RANGE

0,03 - 0,45 MPa

DIFF. RANGE

4,3 - 65,0 psi

EAN NO.

5702428365727

ELECTRICAL CONN. MALE/FEMALE

Female

ELECTR. CONN.

Screwed cable entry

ELECTR. CONN. SIZE

PG 13.5

ELECTR. CONN. STANDARD

DIN 40430

ELECTR. SPEC. STANDARD

EN 60947-5

EN 60947 ELECTR. PROPERTIES

Insulation: 250V

EN 60947 ELECTR. PROPERTIES

Pollution degree: 3

EN 60947 ELECTR. PROPERTIES

Rated impulse voltage: 4 kV

EN 60947 ELECTR. PROPERTIES

Short circuit prot, fuse: 2A

EN 60947 WIRING PROPERTIES

Flex, ferrules: 0.2-1.0 mm2

EN 60947 WIRING PROPERTIES

Flex, no ferrules: 0.2-1.5 mm2

EN 60947 WIRING PROPERTIES

Solid/stranded: 0.2-1.5 mm2

ENCLOSURE RATING

IP20

FACT. SETTING

0,65 bar

FACT. SETTING

9,0 psig

GLOW LAMP

No

IDENTICAL PROD.

060B101666

MAX. TEST PRESSURE

22,0 bar

MAX. TEST PRESSURE

319 psig

MWP

17,0 bar

MWP

245 psig

OPERAT. RANGE LP SIDE

-1 - 12 bar

OPERAT. RANGE LP SIDE

-15 - 175 psig

PACK FORMAT

Multi pack

PRESSURE CONN. SIZE

1/4 IN

PRESS. CONN. STD.

DIN 8906

PRESS. CONN. TYPE

Flare

PRESSURE MALE/FEMALE

Male

DESCRIPT.

Diff. Pressure Switch

PRODUCT ACCESSORIES

Generic accessories

PROD. GROUP

Switches and thermostats

PROD. NAME

Differential pressure switch

PACK QTY.

21 pc

REFRIGERANT

R11

REFRIGERANT

R113

REFRIGERANT

R12

REFRIGERANT

R124

REFRIGERANT

R134a

REFRIGERANT

R22

REFRIGERANT

R404A

REFRIGERANT

R407A

REFRIGERANT

R407C

REFRIGERANT

R407F

REFRIGERANT

R407H

REFRIGERANT

R422B

REFRIGERANT

R422D

REFRIGERANT

R438A

REFRIGERANT

R448A

REFRIGERANT

R449A

REFRIGERANT

R450A

REFRIGERANT

R452A

REFRIGERANT

R507C

REFRIGERANT

R513A

RESET

Auto

SERVICEABLE

No
