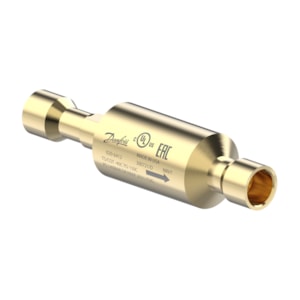

VAN MỘT CHIỀU DANFOSS NRVT 12sH - C/N 020-6412

Gross weight

0.258 Kilogram

Net weight

0.199 Kilogram

EAN

5702424223885

Type

NRVT 12sH

Product group

Check valves

Product Name Description

Check valve

Approval

C UL US LISTED

Body material

Brass

China RoHS compliance

Yes with exemptions

Connection material

Brass

Contain batteries

No

Design

Piston

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

On product label

Ignition source assessment

Yes

Inlet connection type

Solder, ODF

Inlet size [in]

1/2 in

Kv value [m³/h]

2.1 m³/h

Max. Working Pressure [bar]

140 bar

Max. Working Pressure [psig]

2031 psig

MinODP [bar]

0.25 bar

Outlet connection type

Solder, ODF

Outlet size [in]

1/2 in

Packing format

Multi pack

Quantity per packing format

30 pc

Refrigerants

R744

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-40 °F

UL approval file name

REFRIGERANT VALVE 53R0

UL evaluated

Yes
