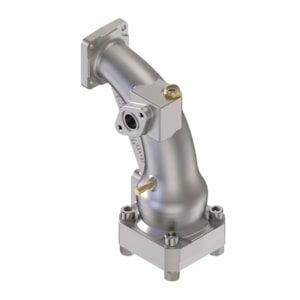

020-5422

Mã sản phẩm: 020-5422

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Product details

Approval	CE; cURus recognized
Ball valve ° (seen from elbow)	0°
Body material	Aluminium
CE evaluated	Yes
Connection material	Aluminum
Contain batteries	No
Cv value [gal/min]	312 gal/min
Design	Piston
Direction	Angleway
Flow direction	Single-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Ignition source assessment	No
Inlet connection type	Flange
Inlet size [in]	2 1/8 in
Inlet size [mm]	54 mm
Kv value [m³/h]	270 m³/h
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	23 bar
Max. Working Pressure [psig]	334 psig
Min. Pressure drop [bar]	0.005 bar
Min. Pressure drop [psi]	0.07 psi
Oil free refrigerants	R1234ze(E); R134a; R513A; R515B
Outlet connection type	Flange
Outlet size [in]	3 1/8 in
Outlet size [mm]	80 mm
Packing format	Single pack
Parts included	Flange kit
PED category	I
Product accessories	Check valve accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E); R134a; R513A; R515B
SCIP dossier no.	a7d4344b-ba97-4b6f-9f6f-78899065c5b4
SCIP dossier product name	OFC
Serviceable	Check valve spare parts
Side port connection type	SINGLE
Side port quantity [pc]	1 pc
Spring color	Blue
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	0 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	32 °F
UL approval file name	SA7200
UL approved refrigerants	R134a; R513A; R515B
UL evaluated	Yes
