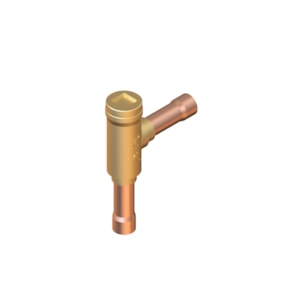

VAN MỘT CHIỀU DANFOSS NRVH 28s E - C/N 020-3029
Product details
|
Gross weight |
1.388 Kilogram |
|
Net weight |
1.26 Kilogram |
|
EAN |
5702428666787 |
|
Type |
NRVH 28s E |
|
Product group |
Check valves |
|
Product Name Description |
Check valve |
|
Approval |
CE; EAC; LLC CDC EURO-TYSK; UKCA |
|
Body material |
Brass |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Yes with exemptions |
|
Connection material |
Copper |
|
Contain batteries |
No |
|
Cv value [gal/min] |
19.07 gal/min |
|
Design |
Piston |
|
Direction |
Angleway |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(c) |
|
Flow direction |
Single-flow |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
1; 2 |
|
Ignition source assessment |
Yes |
|
Inlet connection type |
Solder, ODF |
|
Inlet size [in] |
1 1/8 in |
|
Kv value [m³/h] |
16.5 m³/h |
|
Lubricants compatibility |
Oilfree applications |
|
Max. Working Pressure [bar] |
49 bar |
|
Max. Working Pressure [psig] |
710 psig |
|
Min. Pressure drop [bar] |
0.3 bar |
|
Min. Pressure drop [psi] |
4.3 psi |
|
Oil free refrigerants |
R516A |
|
Outlet connection type |
Solder, ODF |
|
Outlet size [in] |
1 1/8 in |
|
Packing format |
Multi pack |
|
PED category |
Art. 4, par. 3 |
|
Quantity per packing format |
6 pc |
|
Rated cap cond, Hot gas [IMP] |
tcond=86 °F; tdisc=176 °F; tevap=14 °F; thotgas=140 °F; tsub=9 °F |
|
Rated cap cond, Hot gas [SI] |
tcond=30 °C; tdisc=80 °C; tevap=-10 °C; thotgas=60 °C; tsub=5K |
|
Rated cap cond, Liq. cap [IMP] |
tcond=86 °F ; tevap=14 °F; tsub=9 °F |
|
Rated cap cond, Liq. cap [SI] |
tcond=30 °C; tevap=-10 °C; tsub=5K |
|
Refrigerants |
R1233zd(E) |
|
Temperature range [°C] [max] |
155 °C |
|
Temperature range [°C] [min] |
-50 °C |
|
Temperature range [°F] [max] |
311 °F |
|
Temperature range [°F] [min] |
-58 °F |
|
UL approval file name |
REFRIGERANT VALVE 53R0 |
|
UL approved refrigerants |
R1233zd(E) |
