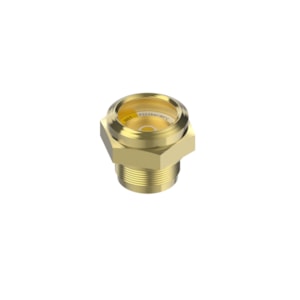

KÍNH XEM GAS DANFOSS Sight glass socket, SGP 24 RI, M24 x 1, M - C/N 014L1154

Gross weight

0.086 Kilogram

Net weight

0.082 Kilogram

EAN

5702428819206

Type

SGP 24 RI

Product group

Sight glasses

Product Name Description

Sight glass socket

Approval

C UL US LISTED; EAC

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Connection size

M24 x 1

Connection type

M

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R22: 150 ppm

Green: max moist con@43 °C

R22: 250 ppm

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

I indicator

Packing format

Multi pack

Parts included

Gasket

Product accessories

Sight glass accessories

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R22

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

SGS saddle application

M24 x 1

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R22

UL evaluated

Yes

Yellow: min moist con@25 °C

R22: 300 ppm

Yellow: min moist con@43 °C

R22: 500 ppm
