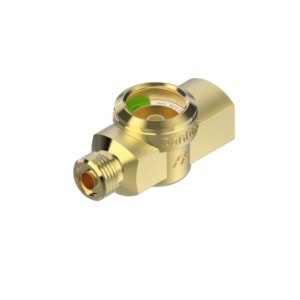

KÍNH XEM GAS DANFOSS SGP 10 I, Sight glass, Face seal, Face seal - C/N 014L1011

Gross weight

0.239 Kilogram

Net weight

0.182 Kilogram

EAN

5702428838610

Type

SGP 10 I

Product group

Sight glasses

Product Name Description

Sight glass

Approval

C UL US LISTED; EAC

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R22: 150 ppm

Green: max moist con@43 °C

R22: 250 ppm

Identical product

014L0091

Inlet connection type

Face seal

Inlet Internal/External

Internal

Inlet size [in]

3/8 in

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

I indicator

Outlet connection type

Face seal

Outlet Internal/External

External

Outlet size [in]

3/8 in

Packing format

Industrial pack

Product accessories

No

Quantity per packing format

70 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R22

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R22

UL evaluated

Yes

Yellow: min moist con@25 °C

R22: 300 ppm

Yellow: min moist con@43 °C

R22: 500 ppm
