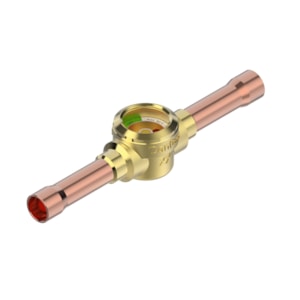

KÍNH XEM GAS DANFOSS SGP 12s I, Sight glass, Solder, ODF, 12.00 mm, Solder, ODF, 12.00 mm - C/N 014L0042

Gross weight

0.184 Kilogram

Net weight

0.165 Kilogram

EAN

5702428838979

Type

SGP 12s I

Product group

Sight glasses

Product Name Description

Sight glass

Approval

C UL US LISTED; EAC

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Copper

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R22: 150 ppm
R290: 25 ppm
R600: 10 ppm
R600a: 11 ppm

Green: max moist con@43 °C

R22: 250 ppm
R290: 50 ppm
R600: 28 ppm
R600a: 30 ppm

Ignition source assessment

Yes

Inlet connection type

Solder, ODF

Inlet size [mm]

12 mm

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

I indicator

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Multi pack

Product accessories

No

Quantity per packing format

28 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R22
R290
R600
R600a

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R22

UL evaluated

Yes

Yellow: min moist con@25 °C

R22: 300 ppm
R290: 50 ppm
R600: 20 ppm
R600a: 22 ppm

Yellow: min moist con@43 °C

R22: 500 ppm
R290: 100 ppm
R600: 55 ppm
R600a: 60 ppm
