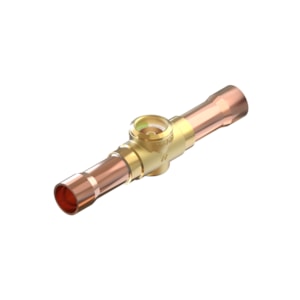

KÍNH XEM GAS DANFOSS SGP 22s I, Sight glass, Solder, ODF, 22.00 mm, Solder, ODF, 22.00 mm - C/N 014L0039

Mã sản phẩm: 014L0039

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

KÍNH XEM GAS DANFOSS SGP 22s I, Sight glass, Solder, ODF, 22.00 mm, Solder, ODF, 22.00 mm - C/N 014L0039

Product details

Approval	C UL US LISTED; EAC
Approval file name	REF. LIQUID INDICATOR 76H4
Body material	Brass
China RoHS compliance	Yes exceed limitations
Connection material	Copper
Contain batteries	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Green: max moist con@25 °C	R22: 150 ppm R290: 25 ppm R600: 10 ppm R600a: 11 ppm
Green: max moist con@43 °C	R22: 250 ppm R290: 50 ppm R600: 28 ppm R600a: 30 ppm
Ignition source assessment	Yes
Inlet connection type	Solder, ODF
Inlet size [in]	7/8 in
Inlet size [mm]	22 mm
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Moisture indicator	I indicator
Other RoHS documentation	Saudi Arabia RoHS
Outlet connection type	Solder, ODF
Outlet size [in]	7/8 in
Outlet size [mm]	22 mm
Packing format	Multi pack
Product accessories	No
Quantity per packing format	28 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9)
Refrigerants	R22 R290 R600 R600a
SCIP dossier no.	323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable	No
Temperature range [°C] [max]	80 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	175 °F
Temperature range [°F] [min]	-58 °F
UL approval file name	REF. LIQUID INDICATOR 76H4
UL approved refrigerants	R22
UL evaluated	Yes
Yellow: min moist con@25 °C	R22: 300 ppm R290: 50 ppm R600: 20 ppm R600a: 22 ppm
Yellow: min moist con@43 °C	R22: 500 ppm R290: 100 ppm R600: 55 ppm R600a: 60 ppm
