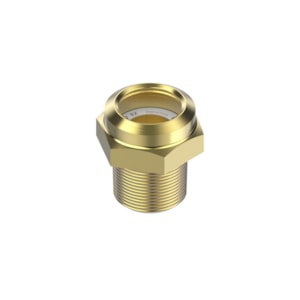

KÍNH XEM GAS DANFOSS Sight glass socket, SGP 1/2 RX, 1/2 in, NPT - C/N 014L0002

Mã sản phẩm: 014L0002

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

KÍNH XEM GAS DANFOSS Sight glass socket, SGP 1/2 RX, 1/2 in, NPT - C/N 014L0002

Product details

Approval	C UL US LISTED
Approval file name	REF. LIQUID INDICATOR 76H4
Body material	Brass
China RoHS compliance	Yes exceed limitations
Connection material	Brass
Connection size	1/2 in
Connection size [in]	1/2 in
Connection standard	ANSI/ASME B1.20.1
Connection type	NPT
Contain batteries	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Floating ball [pc]	3 pc
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Moisture indicator	No indicator
Oil free refrigerants	R1234ze(E) R134a R513A R515B
Packing format	Multi pack
Product accessories	No
Quantity per packing format	19 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R134a R22 R32 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R452B R454B R454C R455A R463A R507A R513A R515B
SCIP dossier no.	525e07d8-f4a6-4108-b8f8-36090550941f
Serviceable	No
Temperature range [°C] [max]	80 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	175 °F
Temperature range [°F] [min]	-58 °F
UL approval file name	REF. LIQUID INDICATOR 76H4
UL approved refrigerants	R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R463A R507A R513A R515B
UL evaluated	Yes
