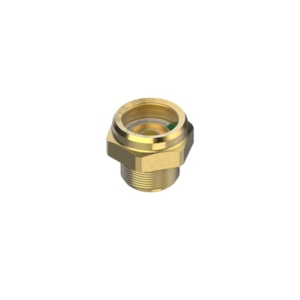

KÍNH XEM GAS DANFOSS Sight glass socket, SGRH, M20 x 1.5, M - C/N 014-1601

Gross weight

0.064 Kilogram

Net weight

0.063 Kilogram

EAN

5702428082402

Type

SGRH

Product group

Sight glasses

Product Name Description

Sight glass socket

Approval

UL

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Connection size

M20 x 1.5

Connection type

M

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R410A: 25 ppm

Green: max moist con@43 °C

R410A: 60 ppm

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Moisture indicator

H indicator

Packing format

Multi pack

Product accessories

Sight glass accessories

Quantity per packing format

19 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R410A

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

SGS saddle application

M20 x 1.5

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R410A

UL evaluated

Yes

Yellow: min moist con@25 °C

R410A: 165 ppm

Yellow: min moist con@43 °C

R410A: 500 ppm
