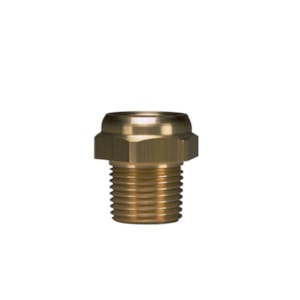

Sight glass socket, SGRI, M24 x 1, M - S/N 014-1154

Gross weight

0.082 Kilogram

Net weight

0.07 Kilogram

EAN

5702428289009

Type

SGRI

Product group

Sight glasses

Product Name Description

Sight glass socket

Approval

UL

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Connection size

M24 x 1

Connection type

M

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R22: 150 ppm

Green: max moist con@43 °C

R22: 250 ppm

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

500 psig

Moisture indicator

I indicator

Packing format

Multi pack

Parts included

Gasket

Product accessories

Sight glass accessories

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R22

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

SGS saddle application

M24 x 1

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R22

UL evaluated

Yes

Yellow: min moist con@25 °C

R22: 300 ppm

Yellow: min moist con@43 °C

R22: 500 ppm
