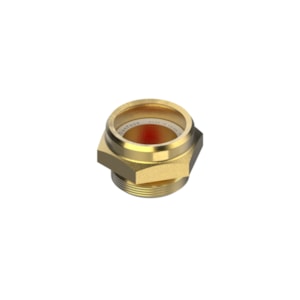

KÍNH XEM GAS DANFOSS SGR, 3/4, G - C/N 014-0004

Gross weight

0.078 Kilogram

Net weight

0.077 Kilogram

EAN

5702422031468

Type

SGR

Product group

Sight glasses

Product Name Description

Sight glass socket

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection Internal/External

External

Connection material

Brass

Connection size

3/4

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Floating ball [pc]

1 pc

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

500 psig

Moisture indicator

No indicator

Oil free refrigerants

R134a; R513A

Packing format

Multi pack

Product accessories

No

Quantity per packing format

19 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1233zd(E)
R1234yf
R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R448A
R449A
R450A
R452A
R507A
R513A

SCIP dossier no.

525e07d8-f4a6-4108-b8f8-36090550941f

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F
