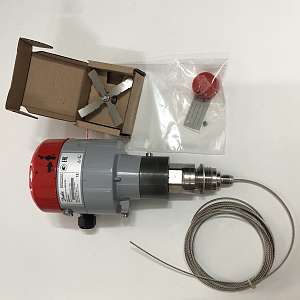

CẢM BIẾN ĐIỀU KHIỂN MỨC LỎNG DANFOSS AKS 4100 C/N 084H4501

Mã sản phẩm: 084H4501
Thương hiệu: Danfoss
Giá bán: 500.000 đ
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: bansibientan@yahoo.com.vn

Gross weight

3.67 Kg

Net weight

2.77 Kg

EAN

5702428414906



Ambient temperature range [°C] [Max]

80 °C

Ambient temperature range [°C] [Min]

-40 °C

Ambient temperature range [°F] [Max]

176 °F

Ambient temperature range [°F] [Min]

-40 °F

Connection size [in]

1

Connection type

G

Design

Cable version

Enclosure rating IP

IP67

Insertion length [in]

197 in

Insertion length [mm]

5000 mm

Load resistance max. [Ohm]

500 Ohm

Max. Working Pressure [bar]

100 bar

Max. Working Pressure [psig]

1450 psig

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Packing format

Single pack

Parts included

HMI

Power consumption [W]

0.7 W

Product description

Liquid Level Sensor

Product group

Sensors

Product name

Liquid level sensor

Quantity per packing format

1 pc

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R507
R717

Supply voltage [V] DC [Max]

30 V

Supply voltage [V] DC [Min]

14 V

Temperature range [°C] [Max]

100 °C

Temperature range [°C] [Min]

-60 °C

Temperature range [°F] [Max]

212 °F

Temperature range [°F] [Min]

-76 °F

Type

AKS 4100
