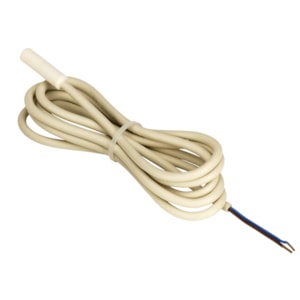

Temperature sensor, EKS 211, 3.500 m, NTC, 5000 Ohm - C/N 084B4404

Mã sản phẩm: 084B4404

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Temperature sensor, EKS 211, 3.500 m, NTC, 5000 Ohm - C/N 084B4404

Product details

Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Cable length [in]	137.8 in
Cable length [m]	3.5 m
Cable tempr. range [°C] [max]	100 °C
Cable tempr. range [°C] [min]	-40 °C
Cable type	PVC
CE evaluated	Out of scope
China RoHS compliance	Out of scope
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable with pins
Electrical connection size	2 wire
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Identical product	084N1221
In scope of WEEE	Yes
Label product	Yes
Measuring range [°C] [max]	80 °C
Measuring range [°C] [min]	-40 °C
Measuring range [°F] [max]	176 °F
Measuring range [°F] [min]	-40 °F
NTC Element characteristic	B(20/100): 3980 ±1,5%
Packing format	Industrial pack
Protection tube diameter [in]	0.32 in
Protection tube diameter [mm]	8 mm
Protection tube length [in]	1.18 in
Protection tube length [mm]	30 mm
Protection tube material	PVT
Quantity per packing format	75 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	c8cac0db-2ee3-4ba7-aa11-15ddb932a486
SCIP dossier product name	NTC Thermistor/ Probe assembly M2020
Sensor elem. resistance [Ohm]	5000
Sensor element [pc]	1 pc
Sensor element tolerance	± 5% (R) at 0°C
Sensor element type	NTC
Sensor Insert	Fixed
Wires [pcs]	2 pc
