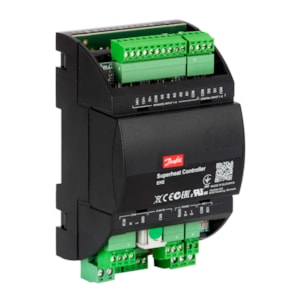

BỘ ĐIỀU KHIỂN VAN DANFOSS EKE 1C - C/N 080G5400

Gross weight

0.292 Kilogram

Net weight

0.165 Kilogram

EAN

5702428964333

Type

EKE 1C

Product group

Electronic valve control

Product Name Description

Superheat controller

Analog inputs (AI) [pc]

2 pc

Analog inputs type

Voltage

Approval

C-TICK
CE
EAC
LLC CDC EURO-TYSK
RoHS
UKCA

Battery back-up [V] DC [max]

24 V

Battery back-up [V] DC [min]

18 V

CE evaluated

Yes

China RoHS compliance

Out of scope

Communication type

CANBUS
Modbus RS485 RTU
RJ11 (CAN) to User Interface

Contain batteries

No

Digital inputs (DI) [pc]

2 pc

Digital outputs (DO) [pc]

1 pc

Display - option

MMIGRS2

Display on front

No

Division

01

EEE category

5 small equipment (any external dimension < 50 cm)

Enclosure rating note

IP40 for Housing

EU RoHS compliance

Out of scope

Frequency [Hz]

50/60 Hz

Further information

Shared power supply
Signal share via hardwire

Gateway option

MMIMYK

In scope of WEEE

Yes

Mounting method

DIN rail

Number of pressure sensors

3

Other RoHS documentation

EAEU RoHS

Packing format

Multi pack

PFAS content [Yes/No]

No

Pressure sensor support

Ratiometric 0.5 - 4 V DC

Product accessories

Electron. control accessories

Product features

Alarm management
Capacity signal from master
Defrost Sequence
Ext reference, temp/SH control
Limitation functions
Manual operation
Preset OD
Reversible system with 1 EXV
Service mode
Start up
Superheat reference
Valve driver: Reference of OD

Product Language

Chinese
English
French
German
Italian
Portuguese
Russian
Spanish

Programming tools

Koolprog

Quantity per packing format

16 pc

REACH Candidate List substances

No

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Temp. sensor configuration

S2, S3 and S4

Temp. sensor support

NTC10000

Valve output type

CCM 10
CCM 20
CCM 30
CCM 40
CCMT 0
CCMT 1
CCMT 16
CCMT 2
CCMT 24
CCMT 30
CCMT 4
CCMT 42
CCMT 8
CTR 20
ETS 100
ETS 100C
ETS 12.5
ETS 12C
ETS 24C
ETS 25
ETS 250
ETS 25B
ETS 25C
ETS 400
ETS 50
ETS 50C
ETS 5M
ETS 6
KVS 15
KVS 2C
KVS 3C
KVS 42
KVS 5C
