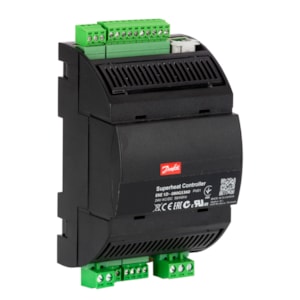

BỘ ĐIỀU KHIỂN VAN DANFOSS EKE 1D - C/N 080G5360

Gross weight

0.242 Kilogram

Net weight

0.134 Kilogram

Volume

1.829 Liter

EAN

5702428680141

Type

EKE 1D

Product group

Electronic valve control

Product Name Description

Superheat controller

Analog inputs (AI) [pc]

2 pc

Analog inputs type

Voltage

Battery back-up [V] DC [max]

24 V

Battery back-up [V] DC [min]

18 V

CE evaluated

Yes

China RoHS compliance

Out of scope

Communication type

CANBUS; RJ11 (CAN) to User Interface

Contain batteries

No

Digital inputs (DI) [pc]

2 pc

Digital outputs (DO) [pc]

1 pc

Display - option

MMIGRS2

Display on front

No

Division

01

EEE category

5 small equipment (any external dimension < 50 cm)

Enclosure rating note

IP40 for Housing

EU RoHS compliance

Out of scope

Frequency [Hz]

50/60 Hz

Further information

Shared power supply; Signal share via hardwire

Gateway option

MMIMYK

In scope of WEEE

Yes

Mounting method

DIN rail

Number of pressure sensors

1

Number of temperature sensors

2

Other RoHS documentation

EAEU RoHS

Packing format

Multi pack

PFAS content [Yes/No]

No

Pressure sensor support

Ratiometric 0.5 - 4 V DC

Product accessories

Electron. control accessories

Product features

Alarm management
Capacity signal from master
Defrost Sequence
Ext reference, temp/SH control
Limitation functions
Manual operation
Preset OD
Reversible system with 1 EXV
Service mode
Start up
Superheat reference
Valve driver: Reference of OD

Product Language

Chinese
English
French
German
Italian
Portuguese
Russian
Spanish

Programming tools

Koolprog

Quantity per packing format

16 pc

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Temp. sensor configuration

S2 and S3 or S4

Temp. sensor support

NTC10000

Valve output type

CCM 10
CCM 20
CCM 30
CCM 40
CCMT 0
CCMT 1
CCMT 16
CCMT 2
CCMT 24
CCMT 30
CCMT 4
CCMT 42
CCMT 8
CTR 20
ETS 100
ETS 100C
ETS 12.5
ETS 12C
ETS 24C
ETS 25
ETS 250
ETS 25B
ETS 25C
ETS 400
ETS 50
ETS 50C
ETS 5M
ETS 6
KVS 15
KVS 2C
KVS 3C
KVS 42
KVS 5C
