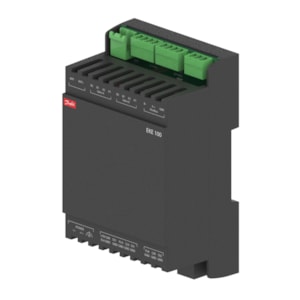

BỘ ĐIỀU KHIỂN VAN DANFOSS EKE 100 2V, IP20 - C/N 080G5056

Gross weight

0.189 Kilogram

Net weight

0.148 Kilogram

EAN

5715162500811

Type

EKE 100 2V

Product group

Electronic valve control

Product Name Description

SH controller and valve driver

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-20 °C

Analog inputs (AI) [pc]

2 pc

Analog inputs type

Voltage or Current

Approval

CE
EAC
RCM
RoHS
UA
UKCA
cURus

Battery back-up [V] DC [max]

24 V

Battery back-up [V] DC [min]

18 V

Buzzer

No

CE evaluated

Yes

Communication type

Modbus RS485 RTU

Connector kit included

Yes

Contain batteries

No

Digital inputs (DI) [pc]

2 pc

Digital outputs (DO) [pc]

1 pc

Display - option

No

Display on front

No

Division

01

EEE category

5 small equipment (any external dimension < 50 cm)

Enclosure rating IP

IP20

EU RoHS compliance

Yes

Frequency [Hz]

50/60 Hz

Gateway option

Koolkey

In scope of WEEE

Yes

Mounting method

DIN rail

Number of pressure sensors

2

Number of temperature sensors

2

Packing format

Multi pack

PFAS content [Yes/No]

No

Pressure sensor support

4 - 20 mA; Ratiometric 0.5 - 4.5 V DC

Product accessories

Electron. control accessories

Product features

Alarm management
Capacity signal from master
Defrost Sequence
Ext reference, temp/SH control
Limitation functions
Manual operation
Preset OD
Reversible system with 1 EXV
Service mode
Start up
Superheat reference
Valve driver: Reference of OD

Product Language

English

Programming tools

Koolprog

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Real time clock

No

SCIP dossier no.

dd52e03c-8b66-4f5b-8e23-1c1ace447e1c

SCIP dossier product name

EKE 100,110

Serviceable

No

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V

Temp. sensor configuration

S2A and S2B

Temp. sensor support

NTC10000; Pt 1000

UL evaluated

Yes

Valve output number

2

Valve output type

CCM 10
CCM 20
CCM 30
CCM 40
CCMT 10L
CCMT 16
CCMT 2
CCMT 24
CCMT 30
CCMT 3L
CCMT 4
CCMT 42
CCMT 5L
CCMT 8
CCMT 8L
CTR 20
ETS 100
ETS 100C
ETS 12
ETS 12C
ETS 175L
ETS 175L OFHT
ETS 24C
ETS 25
ETS 250
ETS 250L
ETS 250L OFHT
ETS 25C
ETS 400
ETS 400L
ETS 400L OFHT
ETS 50
ETS 500L
ETS 500L OFHT
ETS 500P
ETS 50C
ETS 6
ETS 800P
ETS 8M
KVS 15
KVS 1C
KVS 2C
KVS 3C
KVS 42
KVS 5C
