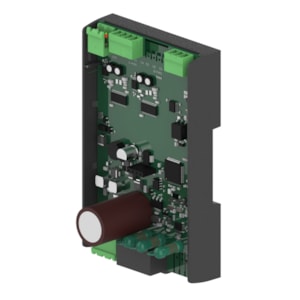

BỘ ĐIỀU KHIỂN VAN DANFOSS EKE 100 1V, IP00 - C/N 080G5050
Product details
|
Gross weight |
0.146 Kilogram |
|
Net weight |
0.104 Kilogram |
|
EAN |
5715162500774 |
|
Type |
EKE 100 1V |
|
Product group |
Electronic valve control |
|
Product Name Description |
SH controller and valve driver |
|
Ambient temperature range [°C] [max] |
70 °C |
|
Ambient temperature range [°C] [min] |
-20 °C |
|
Analog inputs (AI) [pc] |
1 pc |
|
Analog inputs type |
Voltage or Current |
|
Approval |
CE |
|
Battery back-up [V] DC [max] |
24 V |
|
Battery back-up [V] DC [min] |
18 V |
|
Buzzer |
No |
|
CE evaluated |
Yes |
|
Communication type |
Modbus RS485 RTU |
|
Connector kit included |
Yes |
|
Contain batteries |
No |
|
Digital inputs (DI) [pc] |
1 pc |
|
Digital outputs (DO) [pc] |
1 pc |
|
Display - option |
No |
|
Display on front |
No |
|
EEE category |
5 small equipment (any external dimension < 50 cm) |
|
Enclosure rating IP |
IP00 |
|
EU RoHS compliance |
Yes |
|
EU RoHS exemption clause |
No |
|
Frequency [Hz] |
50/60 Hz |
|
Gateway option |
Koolkey |
|
In scope of WEEE |
Yes |
|
Mounting method |
DIN rail |
|
Number of pressure sensors |
1 |
|
Number of temperature sensors |
1 |
|
Packing format |
Multi pack |
|
Pressure sensor support |
4 - 20 mA; Ratiometric 0.5 - 4.5 V DC |
|
Product accessories |
Electron. control accessories |
|
Product features |
Alarm management |
|
Product Language |
English |
|
Programming tools |
Koolprog |
|
Quantity per packing format |
24 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Real time clock |
No |
|
SCIP dossier no. |
dd52e03c-8b66-4f5b-8e23-1c1ace447e1c |
|
SCIP dossier product name |
EKE 100,110 |
|
Serviceable |
No |
|
Supply voltage [V] AC |
24 V |
|
Supply voltage [V] DC |
24 V |
|
Temp. sensor configuration |
S2A |
|
Temp. sensor support |
NTC10000; Pt 1000 |
|
UL evaluated |
Yes |
|
Valve output number |
1 |
|
Valve output type |
CCM 10 |
