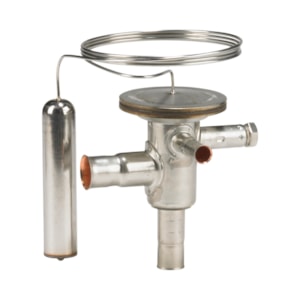

VAN TIẾT LƯU DANFOSS TCHE - C/N 068U4578

Gross weight

0.199 Kilogram

Net weight

0.178 Kilogram

EAN

5702428941952

Type

TCHE

Product group

Press. and temp. regul. valves

Product Name Description

Hot gas bypass regulator

Approval

EAC; LLC CDC TYSK

Body material

Stainless steel

Capillary tube length [in]

35 in

Capillary tube length [mm]

900 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Angleway

Equalization connection type

Solder, ODF

Equalization size [mm]

6 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Single-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Identical product

068U4530

Inlet connection type

Solder, ODF

Inlet size [mm]

10 mm

Max. Working Pressure [bar]

45.5 bar

Max. Working Pressure [psig]

660 psig

Orifice capacities [kW]

2.6 kW

Orifice capacities [TR]

0.75 TR

Orifice size

3

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Multi pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a/R513A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

No

Static Superheat (SS) [°C]

2 °C

Static Superheat (SS) [°F]

3.6 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

12 °C

Temperature range [°C] [min]

-1 °C

Temperature range [°F] [max]

54 °F

Temperature range [°F] [min]

30 °F
