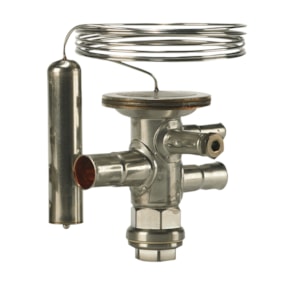

VAN TIẾT LƯU DANFOSS TCAE, R404A/R507A - C/N 068U4321

Gross weight

0.22 Kilogram

Net weight

0.202 Kilogram

Volume

0.489 Liter

EAN

5702428052504

Type

TCAE

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Approval

EAC ; LLC CDC TYSK; UL

Body material

Stainless steel

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Straightway

Equalization connection type

Solder, ODF

Equalization size [mm]

6 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Bi-flow with orifice 1-2

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Inlet connection type

Solder, ODF

Inlet size [mm]

12 mm

Max. Working Pressure [bar]

45.5 bar

Max. Working Pressure [psig]

660 psig

Outlet connection type

Solder, ODF

Outlet size [mm]

16 mm

Packing format

Multi pack

Parts included

Bulb strap

Parts Program name

TCA

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Quantity per packing format

20 pc

Rated cap. cond. Range N [IMP]

OS=7.2 ºF; tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

OS=4K; tcond=38 ºC; tevap=4.4 ºC; tliq=37 ºC

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R404A/R507A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

TXV spare parts

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

-25 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

-15 °F

Temperature range [°F] [min]

-75 °F

UA address


UL approved refrigerants

R404A ; R507A

UL evaluated

Yes
