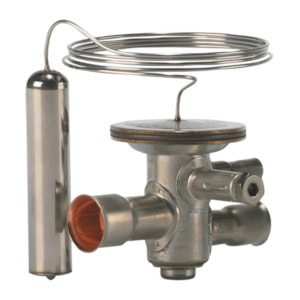

VAN TIẾT LƯU DANFOSS TCBE, R407C - C/N 068U4250

Gross weight

0.21 Kilogram

Net weight

0.189 Kilogram

EAN

5702428051958

Type

TCBE

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Approval

EAC; LLC CDC TYSK

Body material

Stainless steel

Capillary tube length [in]

35 in

Capillary tube length [mm]

900 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Straightway

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a) ; 6(c)

Flow direction

Bi-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Identical product

068U4508

Inlet connection type

Solder, ODF

Inlet size [in]

1/2 in

Max. Working Pressure [bar]

45.5 bar

Max. Working Pressure [psig]

660 psig

Orifice capacities [kW]

23 kW

Orifice capacities [TR]

6.5 TR

Orifice size

2

Outlet connection type

Solder, ODF

Outlet size [in]

5/8 in

Packing format

Multi pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

20 pc

Rated cap. cond. Range N [IMP]

OS=7.2 ºF; tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

OS=4K; tcond=38 ºC; tevap=4.4 ºC; tliq=37 ºC

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R407C

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

No

Static Superheat (SS) [°C]

5 °C

Static Superheat (SS) [°F]

9 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TCBE

UA address


UL approved refrigerants

R407C
