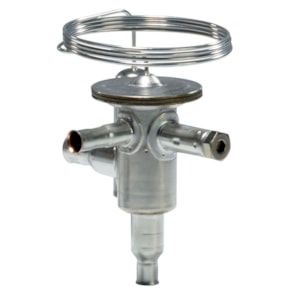

VAN TIẾT LƯU DANFOSS TUBE, R410A - C/N 068U3663

Gross weight

0.164 Kilogram

Net weight

0.148 Kilogram

Volume

0.5 Liter

EAN

5702428483629

Approval

EAC; LLC CDC TYSK; UL

Body material

Stainless steel

Capillary tube length [in]

31 in

Capillary tube length [mm]

800 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Angleway

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Bi-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Identical product

068U1971

Inlet connection type

Solder, ODF

Inlet size [in]

1/4 in

Max. Working Pressure [bar]

45.5 bar

Max. Working Pressure [psig]

660 psig

Orifice capacities [kW]

5.9 kW

Orifice capacities [TR]

1.7 TR

Orifice size

5

Outlet connection type

Solder, ODF

Outlet size [in]

1/2 in

Packing format

Industrial pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

45 pc

Rated cap. cond. Range N [IMP]

OS=7.2 ºF; tcond=100 ºF; tevap=40 ºF; tliq=98 ºF

Rated cap. cond. Range N [SI]

OS=4K; tcond=38 ºC; tevap=4.4 ºC; tliq=37 ºC

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R410A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TUBE

UL approved refrigerants

R410A

UL evaluated

Yes
