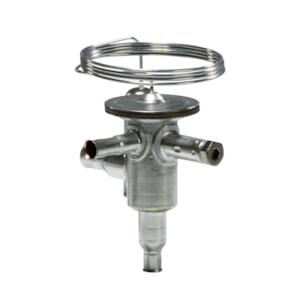

VAN TIẾT LƯU DANFOSS TUH - C/N 068U2953

Gross weight

0.158 Kilogram

Net weight

0.142 Kilogram

Volume

0.5 Liter

EAN

5702428048903

Approval

EAC; LLC CDC TYSK

Body material

Stainless steel

Capillary tube length [in]

31 in

Capillary tube length [mm]

800 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Angleway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Single-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Identical product

068U2956

Inlet connection type

Solder, ODF

Inlet size [in]

3/8 in

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

Orifice capacities [kW]

1.8 kW

Orifice capacities [TR]

0.5 TR

Orifice size

9

Outlet connection type

Solder, ODF

Outlet size [in]

1/2 in

Packing format

Industrial pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Internally equalized

Product accessories

TXV accessories

Product group

Press. and temp. regul. valves

Product Name Description

Hot gas bypass regulator

Quantity per packing format

45 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a/R513A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

No

Static Superheat (SS) [°C]

2 °C

Static Superheat (SS) [°F]

3.6 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-1 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

30 °F

Type

TUH
