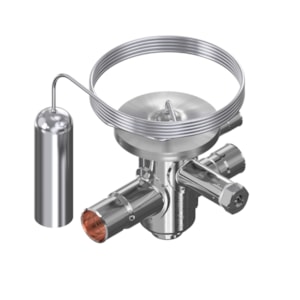

VAN TIẾT LƯU DANFOSS TUBE, R404A/R507A - C/N 068U2775

Gross weight

0.169 Kilogram

Net weight

0.157 Kilogram

Volume

0.5 Liter

EAN

5702428037815

Approval

EAC ; LLC CDC TYSK; UL

Body material

Stainless steel

Capillary tube length [in]

59 in

Capillary tube length [mm]

1500 mm

China RoHS compliance

Out of scope

Connection material

Bi-metal: Steel/copper

Contain batteries

No

Direction

Straightway

Equalization connection type

Solder, ODF

Equalization size [mm]

6 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Flow direction

Single-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Inlet connection type

Solder, ODF

Inlet size [mm]

6 mm

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

MOP Point [psig]

MOP 30

MOP Point [°C]

-20 °C

MOP Point [°F]

-5 °F

Orifice capacities [kW]

1.8 kW

Orifice capacities [TR]

0.5 TR

Orifice size

5

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Industrial pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

45 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R404A/R507A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Seal

No

Serviceable

No

Static Superheat (SS) [°C]

4 °C

Static Superheat (SS) [°F]

7.2 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

-25 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

-15 °F

Temperature range [°F] [min]

-75 °F

Type

TUBE

UL approved refrigerants

R404A; R507A

UL evaluated

Yes
