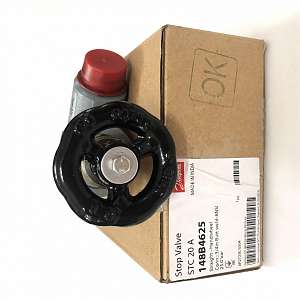

VAN CHẶN THẲNG DANFOSS STC 20A - C/N 148B4625

Gross weight

1.45 Kg

Net weight

1.35 Kg

Volume

1.8 Liter

EAN

5702428883634

Approval

LLC CDC TYSK

Colour Paint

Gray

Connection standard

ASME B 36.10M SCHEDULE 80

Direction

Straightway

Equipment

Handwheel

In scope of WEEE and contain batteries

No

Inlet connection size [in]

3/4 in

Inlet connection size [mm]

20 mm

Inlet connection type

Butt weld

Max. Working Pressure [bar]

25 bar

Max. Working Pressure [psig]

365 psig

Outlet connection size [in]

3/4 in

Outlet connection size [mm]

20 mm

Outlet connection type

Butt weld

Packing format

Single pack

Product description

Stop Valve

Product group

Shut-off and regulating valves

Product Name Description

Shut-off valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a / R22 / R404A / R717 / R507A

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type

STC 20
