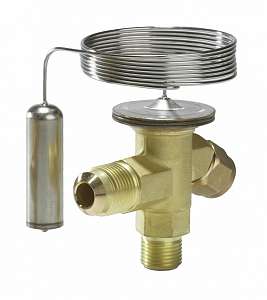

Van tiết lưu Danfoss T 2 - Code number 068Z3206
Sử dụng trong công nghệ lạnh và điều hòa nhiệt độ.
Angleway valve body, inlet size 3/8 inch, outlet size 1/2 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar.
TE 2, flare/flare, versions with external equalization: equalization connection size 1/4 in. / 6 mm.
Characteristic |
Value |
Type | TX 2 |
Weight | 0.280 Kg |
Approval | GOST R |
Body material | BRASS |
Capillary tube length [in] | 59,0 in |
Capillary tube length [mm] | 1.500 mm |
Direction | Angleway |
EAN number | 5702422114130 |
Inlet connection type | Flare |
Inlet size [in] | 3/8 IN |
Max. Working Pressure [bar] | 34,0 bar |
Max. Working Pressure [psig] | 500 psig |
Outlet connection type | Flare |
Outlet/Equalization size [in] | 1/2 IN |
Pack format | Multi pack |
Product description | Thermostatic Expans. Valve |
Quantity per pack format | 20 PC |
Refrigerant(s) | R22/R407C |
Static Superheat (SS) [°C] | 5,0 |
Static Superheat (SS) [°F] | 9,00 °F |
Temperature range [°C] | -40 - 10 °C |
Temperature range [°F] | -40 - 50 °F |
