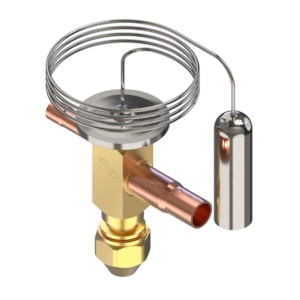

VAN TIẾT LƯU NHIỆT ĐỘ DANFOSS TD 1, R134a; R513A - C/N 068N7611

Gross weight

0.202 Kilogram

Net weight

0.178 Kilogram

Volume

0.474 Liter

EAN

5702424226572

Adjustable

Yes

Approval

C UL US LISTED; EAC; LLC CDC TYSK

Balanced port [Yes/No]

No

Bleed [%]

15 %

Body material

Brass

Capillary tube length [in]

30 in

Capillary tube length [mm]

750 mm

China RoHS compliance

Yes exceed limitations

Connection material

Copper

Contain batteries

No

Direction

Straightway

Element temperature max. [°C]

100 °C

Element temperature max. [°F]

210 °F

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [bar]

2.53 bar

Factory setting [psig]

36.7 psig

Filter

Integrated

Flow direction

Single-flow

Flow direction indicator

Stamped 1-way arrow

Inlet connection type

Solder, ODF

Inlet size [mm]

6 mm

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

Orifice capacities [kW]

1.19 kW

Orifice capacities [TR]

0.34 TR

Orifice size

2

Outlet connection type

Solder, ODF

Outlet size [mm]

10 mm

Packing format

Industrial pack

Parts included

Bulb strap

Pressure equalization

Internally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

32 pc

Rated cap. cond. Range N [IMP]

tcond=90 °F; tevap=41 °F; tliq=82 °F

Rated cap. cond. Range N [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Refrigerants

R134a; R513A

Serviceable

No

Static Superheat (SS) [°C]

3 °C

Static Superheat (SS) [°F]

5.4 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

20 °C

Temperature range [°C] [min]

-25 °C

Temperature range [°F] [max]

70 °F

Temperature range [°F] [min]

-15 °F

Type

TD 1

UL approval file name

SA7200

UL evaluated

Yes
