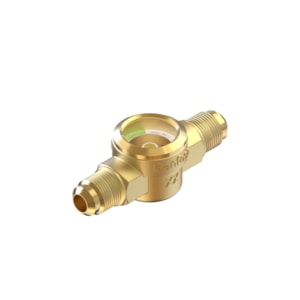

KÍNH XEM GAS DANFOSS SGP 10 N (Flare, 10 mm) - C/N 014L0162

Gross weight

0.18 Kilogram

Net weight

0.167 Kilogram

Volume

0.143 Liter

EAN

5702428818841

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Contain batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R134a: 30 ppm
R22: 30 ppm
R404A: 20 ppm
R407A: 29 ppm
R407C: 30 ppm
R407F: 30 ppm
R410A: 66 ppm
R448A: 28 ppm
R449A: 29 ppm
R450A: 23 ppm
R452A: 20 ppm
R507A: 15 ppm
R513A: 22 ppm

Green: max moist con@43 °C

R134a: 45 ppm
R22: 50 ppm
R404A: 25 ppm
R407A: 48 ppm
R407C: 60 ppm
R407F: 60 ppm
R410A: 135 ppm
R448A: 70 ppm
R449A: 53 ppm
R450A: 46 ppm
R452A: 30 ppm
R507A: 30 ppm
R513A: 22 ppm

Inlet connection type

Flare

Inlet Internal/External

External

Inlet size [in]

3/8 in

Inlet size [mm]

10 mm

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

N indicator

Oil free refrigerants

R1234ze(E)
R134a
R513A
R515B

Other RoHS documentation

Saudi Arabia RoHS

Outlet connection type

Flare

Outlet Internal/External

External

Outlet size [in]

3/8 in

Outlet size [mm]

10 mm

Packing format

Multi pack

Product accessories

Generic accessories

Product group

Sight glasses

Product Name Description

Sight glass

Quantity per packing format

25 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R1233zd(E)
R1234yf
R1234ze(E)
R134a
R22
R32
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R450A
R452A
R452B
R454B
R454C
R455A
R463A
R507A
R513A
R515B
R744

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

Type

SGP 10 N

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R1233zd(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R410A
R448A
R449A
R450A
R452A
R463A
R507A
R513A
R515B
R744

UL evaluated

Yes

Yellow: min moist con@25 °C

R134a: 100 ppm
R22: 120 ppm
R404A: 70 ppm
R407A: 115 ppm
R407C: 140 ppm
R407F: 168 ppm
R410A: 266 ppm
R448A: 110 ppm
R449A: 105 ppm
R450A: 148 ppm
R452A: 79 ppm
R507A: 60 ppm
R513A: 75 ppm

Yellow: min moist con@43 °C

R134a: 170 ppm
R22: 200 ppm
R404A: 100 ppm
R407A: 192 ppm
R407C: 225 ppm
R407F: 240 ppm
R410A: 540 ppm
R448A: 227 ppm
R449A: 200 ppm
R450A: 245 ppm
R452A: 143 ppm
R507A: 110 ppm
R513A: 123 ppm
