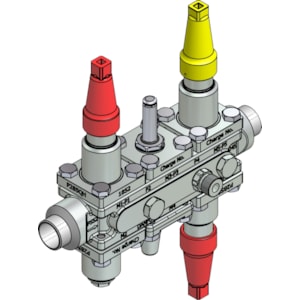

VAN TỔ HỢP ICF 20 (ICF 20-6-1RA, 25 mm, EN 10220) - C/N 027L3002

Gross weight

10.3 Kilogram

Net weight

9.734 Kilogram

Volume

27.38 Liter

EAN

5702428240765

Approval

CE; EAC; LLC CDC TYSK; TÜV; UKCA; UL

Body material

Steel

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Steel

Connection size [in]

1 in

Connection size [mm]

25 mm

Connection standard

EN 10220

Connection type

Butt weld

Contain batteries

No

Direction

Straightway

Equipment

Cap

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Module 1

Stop valve

Module 1 type

ICFS 20

Module 2

Filter

Module 2 type

ICFF 20

Module 3

Solenoid valve

Module 3 type

ICFE 20

Module 4

Manual opening

Module 4 type

ICFO 20

Module 5

Manual regulating valve

Module 5 type

ICFR 20A

Module 6

Stop valve

Module 6 type

ICFS 20

Packing format

Single pack

PED category

II

Product accessories

ICF accessories

Product description

Control Solution

Product group

Multifunction valves

Product Name Description

Valve station

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
R1234yf
R1234ze(E)
R125
R227ea
R236fa
R245fa
R32
R407H
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R513A
R513B
R515A
R515B
R516A

Serviceable

ICF spare parts

Side port connection size [in]

3/8 in

Side port connection type

G

Side port placement

P2-P4-P5-P7-P9-P10

Side port quantity [pc]

6 pc

Surface coating

Zn (TLP)

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Type

ICF 20-6-1RA

Type code ICF

ICF-20-6-25DSXFXEXOXRASX61XX

UL evaluated

Yes
