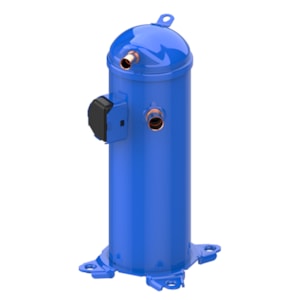

MÁY NÉN DANFOSS HCJ106T4LC6 - C/N 121L3115

Gross weight

51.17 Kilogram

Net weight

44 Kilogram

Volume

0.06 Cubic meter

EAN

5702424053451

Approval

CE; UKCA; UL

Brand technique

Scroll compressor

Capacity control

Fixed speed

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Contain batteries

No

Description

HCJ106T4

Diameter [mm]

184 mm

Discharge connection height [mm]

538 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

0SR4109B1

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I ; 6(a); 6(a)-I; 6(c) ; 7(a); 8(b)

Family

HCJ

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

None

Gaz equalization

None

Glass mounting

None

High value of nominal voltage at 50Hz [V]

415 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

457 V

High value of voltage range at 60Hz [V]

506 V

In scope of WEEE

No

IP protection class

IP22

Length [mm]

239 mm

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

125 A

Max pressure (PS) - high side

46.1 bar

Max pressure (PS) - low side

31.1 bar

MCC

26 A

Model number

HCJ106T4LC6

Motor protection

Internal overload protector

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Oil charge [L]

2.46 L

Oil drain

None

Oil equalization

None

Oil reference

320HV

Oil type

PVE

Packing format

Single pack

Packing quantity

1

Phase

3

Power connections

Screw connectors 10-32 UNF x 9.5

Product group

Hermetic compressors

Product Name Description

Scroll compressor HCJ

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

7.26 kg

Refrigerants

R410A

RLA

18.6 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

6987e9ab-f9b7-473c-9c29-6cb05443e8ef

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets and sleeves

Shipped oil

Initial oil charge

Suction connection height [mm]

405 mm

Suction connection material

-

Suction connection pipe size [in]

1 1/8 in

Suction connection size [in]

1 1/8 in

Swept volume [cm3]

101.6 cm³

Technology

Scroll

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

565 mm

Type

HCJ106

U.S. EPA label

For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.

UL evaluated

Yes

Viscosity [cP]

68 cP

Width [mm]

239 mm

Winding resistance 1-2 [Ohm]

0.96

Winding resistance 1-3 [Ohm]

0.94

Winding resistance 2-3 [Ohm]

0.96
