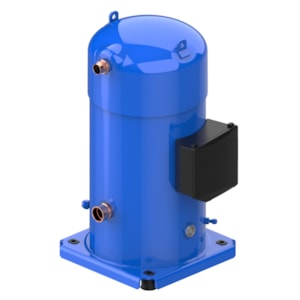

MÁY NÉN DANFOSS SY240A4CBE - C/N SY240A4CBM

Gross weight

155 Kilogram

Net weight

152 Kilogram

Volume

0.244 Cubic meter

EAN

5702428660730

Approval

CE; UL; UKCA

Brand technique

Scroll compressor

Capacity control

Fixed speed

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Contain batteries

No

Description

SY240-4

Diameter [mm]

344 mm

Discharge connection height [mm]

654 mm

Discharge connection pipe size [in]

1 1/8 in

Discharge connection size [in]

1 1/8 in

Drawing number

8556092b

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I; 6(a); 6(a)-I; 6(c); 7(a); 8(b)

Factory HP [bar]

33 bar

Factory LP [bar]

25 bar

Family

SY

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

Schrader

Glass mounting

Threaded

Glass torque [Nm]

50 N-m

GP LP torque [Nm]

15 N-m

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

5 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

In scope of WEEE

No

IP protection class

IP54 (with cable gland)

Low Side TS Max

52 °C

Low Side TS Min

-35 °C

Low Side Volume

34.1 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

215 A

Max pressure (PS) - high side

31.8 bar

Max pressure (PS) - low side

20 bar

MCC

50 A

Model number

SY240A4CBE

Motor protection

Electronic protection module, 110/240 V

Mounting torque [Nm]

40 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

8 L

Oil drain

1/4'' flare

Oil drain torque [Nm]

35 N-m

Oil equalization

1/2'' flare

Oil equalization torque [Nm]

66 N-m

Oil reference

320SZ

Packaging height [mm]

904 mm

Packaging length [mm]

1140 mm

Packaging weight [Kg]

635 kg

Packaging width [mm]

950 mm

Packing format

Industrial pack

Packing quantity

4

Phase

3

Power connections

Stud M5

Product group

Hermetic compressors

Product Name Description

Scroll compressor SY

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

16 kg

Refrigerants

R134a; R22; R407C; R513A

Reverse rotation protection

Electronic module

RLA

35.7 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

51393c5f-fa09-4984-947c-f686d7aaef0f

SCIP dossier product name

SVA-S top complete cap

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped module

Electronic protection module mounted in terminal box

Shipped mounting

Mounting kit with grommets and sleeves

Shipped oil

Initial oil charge

Suction connection height [mm]

196 mm

Suction connection material

-

Suction connection pipe size [in]

1 5/8 in

Suction connection size [in]

1 5/8 in

Swept volume [cm3]

347.8 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

20 bar

Torque earth [Nm]

4 N-m

Torque power [Nm]

3 N-m

Total height [mm]

727 mm

Type

SY240

U.S. EPA label

For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.

UL evaluated

Yes

Viscosity [cP]

68 cP

Winding resistance for three-phase compressors with identical windings [Ohm]

0.616 Ohm
