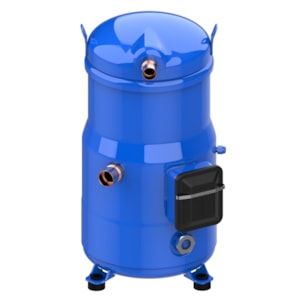

MÁY NÉN DANFOSS SH090A4ALC - C/N 120H0003

Gross weight

61.91 Kilogram

Net weight

58 Kilogram

Volume

0.23 Cubic meter

EAN

5702428980883

Approval

CE; UL; UKCA

Brand technique

Scroll compressor

Capacity control

Fixed speed

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Contain batteries

No

Description

SH090-4

Diameter [mm]

243 mm

Discharge connection height [mm]

451 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

8560004

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

7(c)-I; 6(a); 6(a)-I; 6(c); 7(a); 8(b)

Factory HP [bar]

0 bar

Factory LP [bar]

0 bar

Family

SH

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Glass mounting

Threaded

Glass torque [Nm]

50 N-m

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

0.7 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

In scope of WEEE

No

IP protection class

IP54 (with cable gland)

Low Side TS Max

55 °C

Low Side TS Min

-35 °C

Low Side Volume

11.7 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

98 A

Max pressure (PS) - high side

48.7 bar

Max pressure (PS) - low side

33.3 bar

Maximum Operating Current [MOC]

19 A

MCC

22 A

Model number

SH090A4ALC

Motor protection

Internal overload protector

Mounting torque [Nm]

15 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

3 L

Oil equalization

1-3/4"Rotolock

Oil reference

160SZ

Oil type

POE

Packaging height [mm]

596 mm

Packaging length [mm]

470 mm

Packaging weight [Kg]

60 kg

Packaging width [mm]

370 mm

Packing format

Single pack

Packing quantity

1

Phase

3

Power connections

Screw 4.8 mm

Product group

Hermetic compressors

Product Name Description

Scroll compressor SH

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

5.9 kg

Refrigerants

R410A

RLA

14.3 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

bff3e2c3-5aad-40f0-b874-7eee67aaf788

SCIP dossier product name

CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

235 mm

Suction connection material

-

Suction connection pipe size [in]

1 1/8 in

Suction connection size [in]

1 1/8 in

Swept volume [cm3]

88.4 cm³

Technology

Scroll

Test dif [bar] [Max]

37 bar

Test HP [bar] [Max]

48.7 bar

Test LP [bar] [Max]

33.3 bar

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

482 mm

Type

SH090

U.S. EPA label

For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.

UL evaluated

Yes

Viscosity [cP]

32 cP

Winding resistance for three-phase compressors with identical windings [Ohm]

1.47 Ohm
