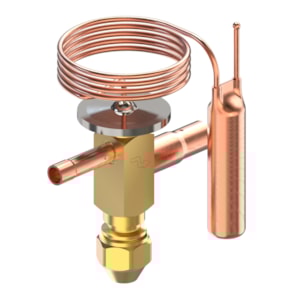

VAN TIẾT LƯU NHIỆT ĐỘ DANFOSS TD 1, R404A - C/N 068N2907

Gross weight

0.225 Kilogram

Net weight

0.183 Kilogram

Volume

0.46 Liter

EAN

5702428137805

Adjustable

Yes

Approval

EAC; LLC CDC TYSK

Balanced port [Yes/No]

No

Body material

Brass

Capillary tube length [in]

30 in

Capillary tube length [mm]

750 mm

China RoHS compliance

Yes exceed limitations

Connection material

Copper

Contain batteries

No

Direction

Straightway

Element temperature max. [°C]

100 °C

Element temperature max. [°F]

210 °F

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [bar]

5.3 bar

Factory setting [psig]

76.9 psig

Filter

Integrated

Flow direction

Single-flow

Flow direction indicator

Stamped 1-way arrow

Inlet connection type

Solder, ODF

Inlet size [in]

1/4 in

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

Orifice capacities [kW]

0.42 kW

Orifice capacities [TR]

0.12 TR

Orifice size

0

Outlet connection type

Solder, ODF

Outlet size [in]

3/8 in

Packing format

Industrial pack

Parts included

Bulb strap

Pressure equalization

Internally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

32 pc

Rated cap. cond. Range N [IMP]

tcond=90 °F; tevap=41 °F; tliq=82 °F

Rated cap. cond. Range N [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R404A

SCIP dossier no.

3e6257ae-4c71-440b-b37c-a7fc7f28ad0e

SCIP dossier product name

TD/TDE1

Serviceable

No

Static Superheat (SS) [°C]

3 °C

Static Superheat (SS) [°F]

5.4 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

TD 1
