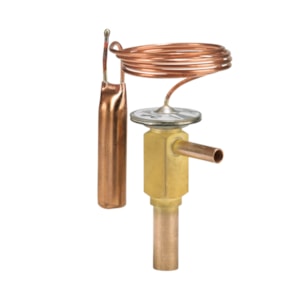

VAN TIẾT LƯU NHIỆT ĐỘ DANFOSS TD 1, R134a; R513A - C/N 068N1922

Gross weight

0.172 Kilogram

Net weight

0.147 Kilogram

Volume

0.474 Liter

EAN

5702428079334

Adjustable

No

Approval

EAC; LLC CDC TYSK

Balanced port [Yes/No]

No

Body material

Brass

Capillary tube length [in]

30 in

Capillary tube length [mm]

750 mm

China RoHS compliance

Yes exceed limitations

Connection material

Copper

Contain batteries

No

Direction

Angleway

Element temperature max. [°C]

100 °C

Element temperature max. [°F]

210 °F

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [bar]

2.53 bar

Factory setting [psig]

36.7 psig

Filter

Integrated

Flow direction

Single-flow

Flow direction indicator

Stamped 1-way arrow

Inlet connection type

Solder, ODF

Inlet size [mm]

6 mm

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

500 psig

MOP Point [psig]

MOP 70

MOP Point [°C]

20 °C

MOP Point [°F]

68 °F

Orifice capacities [kW]

0.8 kW

Orifice capacities [TR]

0.23 TR

Orifice size

1

Outlet connection type

Solder, ODF

Outlet size [mm]

10 mm

Packing format

Industrial pack

Pressure equalization

Internally equalized

Product accessories

TXV accessories

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Quantity per packing format

32 pc

Rated cap. cond. Range N [IMP]

tcond=90 °F; tevap=41 °F; tliq=82 °F

Rated cap. cond. Range N [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R513A

SCIP dossier no.

3e6257ae-4c71-440b-b37c-a7fc7f28ad0e

SCIP dossier product name

TD/TDE1

Serviceable

No

Static Superheat (SS) [°C]

3 °C

Static Superheat (SS) [°F]

5.4 °F

Temperature range [°C] [max]

15 °C

Temperature range [°C] [min]

-25 °C

Temperature range [°F] [max]

60 °F

Temperature range [°F] [min]

-15 °F

Type

TD 1
