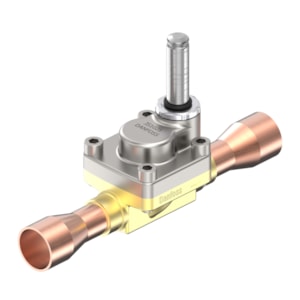

VAN TIẾT LƯU ĐIỆN DANFOSS AKV 15-4 - C/N 068F5038

Gross weight

1.59 Kilogram

Net weight

1.295 Kilogram

Volume

6.248 Liter

EAN

5702428058544

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 50 °C

Ambient temperature range [°F] [max]

120 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US LISTED; EAC; LLC CDC TYSK

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Cv value [gal/min]

1.16 gal/min

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Function

NC

Inlet connection type

Solder, ODF

Inlet size [in]

1 1/8 in

Kv value [m³/h]

1 m³/h

Manual operation option

No

Max. Working Pressure [bar]

34.5 bar

Max. Working Pressure [psig]

500 psig

MaxOPD[bar] 10W AC

22 bar

MaxOPD[psi] 10W AC

318 psi

MaxOPD[psi] 14W AC

325 psi

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0.45 bar

MinODP [psi]

6.52 psi

MOPD[bar/psi]

22 bar

Orifice size [mm]

5.6 mm

Outlet connection type

Solder, ODF

Outlet size [in]

1 1/8 in

Packing format

Single pack

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

1 pc

Rated capacity R22 [kW]

100 kW

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R23
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
R744

SCIP dossier no.

d2e83edf-9926-4553-9f97-cb637e372395

Serviceable

Electric valve spare parts

Type

AKV 15-4

Type designation

Electric expansion valve

UL approved refrigerants

R134a
R22
R23
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
R744

UL evaluated

Yes
