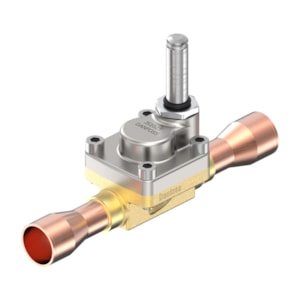

VAN TIẾT LƯU ĐIỆN DANFOSS AKV 15-4 - C/N 068F5016

Mã sản phẩm: 068F5016

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN TIẾT LƯU ĐIỆN DANFOSS AKV 15-4 - C/N 068F5016

Product details

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 50 °C
Ambient temperature range [°F] [max]	120 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	EAC; LLC CDC TYSK
China RoHS compliance	Out of scope
Coil	No
Contain batteries	No
Cv value [gal/min]	1.16 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(c)
Function	NC
Inlet connection type	Solder, ODF
Inlet size [mm]	28 mm
Kv value [m³/h]	1 m³/h
Manual operation option	No
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
MaxOPD[bar] 10W AC	22 bar
MaxOPD[psi] 10W AC	318 psi
Medium temperature range [°C] [max]	60 °C
Medium temperature range [°C] [min]	-50 °C
Medium temperature range [°F] [max]	140 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.3 bar
MinODP [psi]	4.5 psi
MOPD[bar/psi]	22 bar
Orifice size [mm]	5.6 mm
Outlet connection type	Solder, ODF
Outlet size [mm]	28 mm
Packing format	Single pack
Product accessories	Electric valve accessories
Product group	Expansion valves
Product Name Description	Electric expansion valve
Quantity per packing format	1 pc
Rated capacity R22 [kW]	100 kW
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R744
SCIP dossier no.	d2e83edf-9926-4553-9f97-cb637e372395
Serviceable	Electric valve spare parts
Type	AKV 15-4
Type designation	Electric expansion valve
