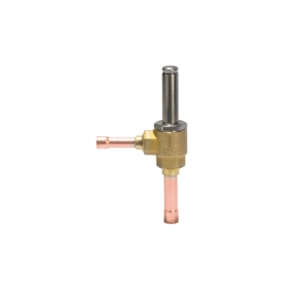

VAN TIẾT LƯU ĐIỆN DANFOSS AKVH 10-1 - C/N 068F4079

Gross weight

0.352 Kilogram

Net weight

0.284 Kilogram

Volume

1.147 Liter

EAN

5702428253307

Actuator system [mm]

13.5 mm

Ambient temperature

-50 - 50 °C

Ambient temperature range [°F] [max]

120 °F

Ambient temperature range [°F] [min]

-58 °F

Approval

EAC; LLC CDC TYSK

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Cv value [gal/min]

0.01 gal/min

Direction

Angleway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(c)

Function

NC

Inlet connection type

Solder, ODF

Inlet size [in]

3/8 in

Kv value [m³/h]

0.01 m³/h

Manual operation option

No

Max. Working Pressure [bar]

90 bar

Max. Working Pressure [psig]

1305 psig

MaxOPD[bar] 10W AC

35 bar

MaxOPD[psi] 10W AC

505 psi

Medium temperature range [°C] [max]

60 °C

Medium temperature range [°C] [min]

-50 °C

Medium temperature range [°F] [max]

140 °F

Medium temperature range [°F] [min]

-58 °F

MinODP [bar]

0 bar

MinODP [psi]

0 psi

MOPD[bar/psi]

35 bar

Orifice size [mm]

0.5 mm

Outlet connection type

Solder, ODF

Outlet size [in]

1/2 in

Packing format

Multi pack

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

18 pc

Rated capacity R744 [kW]

1.3 kW

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R23
R404A
R407A
R407C
R407F
R407H
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R463A
R507A
R513A
R513B
R515A
R515B
R744

SCIP dossier no.

f6850b72-47a2-4abe-af91-54517615d87e

SCIP dossier product name

HEVP AKVH10-0 - 6

Serviceable

Electric valve spare parts

Type

AKVH 10-1

Type designation

Electric expansion valve
