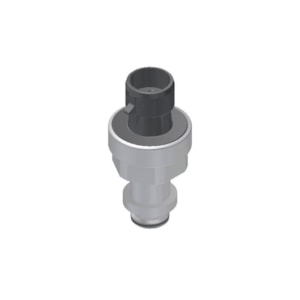

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1900, 0- 10 bar, 0 - 145.04 psi - C/N 064G6646

Gross weight

0.044 Kilogram

Net weight

0.04 Kilogram

Volume

0.109 Liter

EAN

5702428851770

+ supply

Pin 2

- common

Pin 3

Accuracy @ ref. temp. ±FS [%]

1 %

Accuracy, typical [±FS%]

1 %

Ambient temperature range [°C] [max]

80 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

176 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

cURus; CE

Approval comments

UL-873

CE evaluated

Yes

China RoHS compliance

Yes

Comments

O-RING W/ WRAS APPROVEL (NBR)

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contain batteries

No

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault Monitoring Demand

No

Flush diaphragm

No

Identical product

063G4514

International Article Number

5702428851770

Intrinsically safe

No

Medium temperature range [°C] [max]

80 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

176 °F

Medium temperature range [°F] [min]

32 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

75 bar

Overload pressure max. [psi]

1088 psi

Packing format

Multi pack

Pressure connection HEX [mm]

24 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

Special

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145.04 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

45 pc

REACH Candidate List substances

No

Reference temperature [°C]

20 °C

Reference temperature [°F]

68 °F

Response time max. [ms]

4 ms

Specification key

MBS 1900-2011-C2CD12

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

3 %

Type

MBS 1900

UL evaluated

Yes
