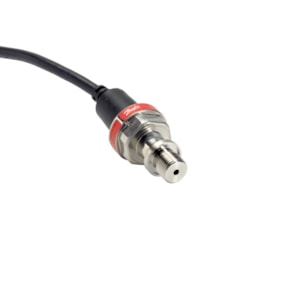

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1900, 0 - 6 bar, 0- 87 psi - C/N 064G6665

Gross weight

0.188 Kilogram

Net weight

0.187 Kilogram

Volume

1.33 Liter

EAN

5702428906739

+ supply

Red

- common

Black

Accuracy @ ref. temp. ±FS [%]

1 %

Accuracy, typical [±FS%]

1 %

Ambient temperature range [°C] [max]

80 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

176 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

cURus; CE

Approval comments

UL-873

Cable length [in]

79 in

Cable length [m]

2 m

CE evaluated

Yes

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contain batteries

No

Electrical conn. comments

Screened cable

Electrical connection

Cable

Electrical connection size

3 wire

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault Monitoring Demand

No

Flush diaphragm

No

International Article Number

5702428906739

Intrinsically safe

No

Medium temperature range [°C] [max]

80 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

176 °F

Medium temperature range [°F] [min]

32 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

18 bar

Overload pressure max. [psi]

261 psi

Packing format

Multi pack

Pressure connection HEX [mm]

24 mm

Pressure connection notes

A

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

6 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

87 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

No

Reference temperature [°C]

20 °C

Reference temperature [°F]

68 °F

Response time max. [ms]

4 ms

Specification key

MBS 1900-1811-A3AB04-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

3 %

Type

MBS 1900

UL evaluated

Yes
