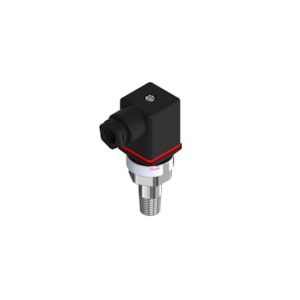

CẢM BIẾN ÁP SUẤT DANFOSS MBS 1900, 0 - 25bar, 0 - 362.59psi - C/N 064G6729

Gross weight

0.088 Kilogram

Net weight

0.067 Kilogram

Volume

0.253 Liter

EAN

5702428048378

+ supply

Pin 1

- common

Pin 2

Accuracy @ ref. temp. ±FS [%]

1 %

Accuracy, typical [±FS%]

1 %

Ambient temperature range [°C] [max]

80 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

176 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

cURus; CE

Approval comments

UL-873

CE evaluated

Yes

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contain batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault Monitoring Demand

No

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [max]

80 °C

Medium temperature range [°C] [min]

0 °C

Medium temperature range [°F] [max]

176 °F

Medium temperature range [°F] [min]

32 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

75 bar

Overload pressure max. [psi]

1088 psi

Packing format

Multi pack

Pressure connection HEX [mm]

24 mm

Pressure connection size

1/4

Pressure connection standard

ISO 7-1

Pressure connection type

R

Pressure Male/Female

Male

Pressure range [bar] [max]

25 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

362.59 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

No

Reference temperature [°C]

20 °C

Reference temperature [°F]

68 °F

Response time max. [ms]

4 ms

Specification key

MBS 1900-2411-A1PT04-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

3 %

Type

MBS 1900

UL evaluated

Yes
