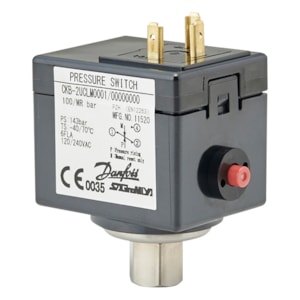

CÔNG TẮC ÁP SUẤT DANFOSS CKB - C/N 061Z2008

Mã sản phẩm: 061Z2008

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CÔNG TẮC ÁP SUẤT DANFOSS CKB - C/N 061Z2008

Product details

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE 0035; TÜV
CE evaluated	Yes
China RoHS compliance	Out of scope
Contact function	SPDT
Contact rating	AC=6 A, 250 V
Contain batteries	No
Electrical conn. comments	DIN plug not included
Electrical connection	DIN Spade
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Higher activ. pressure [bar]	118 bar
Higher activ. pressure [psi]	1711 psi
Max. Working Pressure [bar]	143 bar
Max. Working Pressure [psig]	2074 psig
Medium temperature range [°C] [max]	150 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	302 °F
Medium temperature range [°F] [min]	-40 °F
Packing format	Multi pack
Pressure connection length[in]	0.55 in
Pressure connection length[mm]	14 mm
Pressure connection notes	Deflator
Pressure connection size	1/4 in
Pressure connection type	Flare
Pressure Male/Female	Female
Pressure range category	High pressure
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	25 pc
Refrigerants	R744
Reset function	Manual
Specification key	CKB-2UCLM2008
Type	CKB
