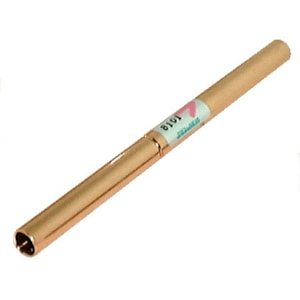

VAN DANFOSS BCV 41.5BAR - C/N 061N3000

Mã sản phẩm: 061N3000

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS BCV 41.5BAR - C/N 061N3000

Product details

Approval	CE
Body material	Copper
CE evaluated	Yes
Connection material	Copper
Contain batteries	No
Cv value [gal/min]	0.97 gal/min
Design	Float
Direction	Straightway
Flow direction	Single-flow
Flow direction indicator	Label printed 1-way arrow
Inlet connection type	Solder, ODF
Inlet size [in]	3/8 in
Kv value [m³/h]	0.83 m³/h
Max. Working Pressure [bar]	41.5 bar
Max. Working Pressure [psig]	602 psig
Min. Pressure drop [bar]	0.078 bar
Min. Pressure drop [psi]	1.1 psi
Outlet connection type	Solder, ODF
Outlet size [in]	3/8 in
Packing format	Industrial pack
Product group	Check valves
Product Name Description	Check valve
Quantity per packing format	250 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R404A R407C R410A R507A
SCIP dossier no.	be7ba087-4bcb-4c85-8e38-190a736d6307
SCIP dossier product name	Check valve(3)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-30 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-22 °F
Type	BCV
Type designation	BCV-603DY
