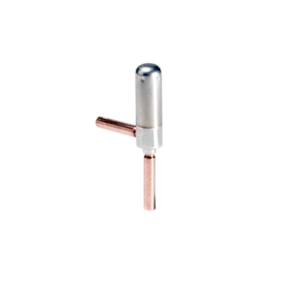

VAN TIẾT LƯU ĐIỆN DANFOSS UKV - C/N 061L4155

Gross weight

0.152 Kilogram

Net weight

0.054 Kilogram

Volume

3.002 Liter

EAN

5702428270991

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-22 °F

China RoHS compliance

Out of scope

Connection material

Copper

Connection type

Solder, ODF

Contain batteries

No

Direction

Angleway

EU RoHS compliance

Out of scope

Flow direction

Bi-flow

Inlet size [mm]

6.35 mm

Lubricants compatibility

POE

Max. Working Pressure [bar]

150 bar

MaxOPD [bar]

100 bar

Motor type

Permanent magnet stepper motor

Orifice size [mm]

1.4 mm

Outlet size [mm]

6.35 mm

Packing format

Industrial pack

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

20 pc

Rated cap. conditions [IMP]

Subcooling = 32F

Rated cap. conditions [SI]

Subcooling = 0C

Rated capacity R744 [kW]

11.2 kW

Refrigerant temperature [ºC] [max]

70 °C

Refrigerant temperature [ºC] [min]

-30 °C

Refrigerant temperature [ºF] [max]

158 °F

Refrigerant temperature [ºF] [min]

-22 °F

Refrigerants

R744

Serviceable

No

Step mode

2-phase full step

Total steps

480 (half steps)

Type

UKV

Type designation

UKV-J14D04
