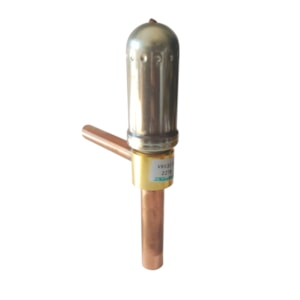

VAN TIẾT LƯU ĐIỆN DANFOSS VKV - C/N 061L4123

Gross weight

0.161 Kilogram

Net weight

0.153 Kilogram

Volume

0.397 Liter

EAN

5702428271233

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-22 °F

China RoHS compliance

Out of scope

Connection material

Copper

Connection type

Solder, ODF

Contain batteries

No

Direction

Angleway

EU RoHS compliance

Out of scope

Flow direction

Bi-flow

Inlet size [mm]

9.52 mm

Lubricants compatibility

POE

Max. Working Pressure [bar]

42 bar

MaxOPD [bar]

25 bar

MaxOPD [psig]

3626 psig

Motor type

Permanent magnet stepper motor

Orifice size [mm]

3.2 mm

Packing format

Industrial pack

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

100 pc

Rated cap. conditions [IMP]

Subcooling = 32F

Rated cap. conditions [SI]

Subcooling = 0C

Rated capacity R134a [kW]

22.5 kW

Rated capacity R134a [TR]

6.4 TR

Rated capacity R22 [kW]

28.8 kW

Rated capacity R22 [TR]

8.2 TR

Rated capacity R407C [kW]

29.6 kW

Rated capacity R407C [TR]

8.4 TR

Rated capacity R410A [kW]

33.9 kW

Rated capacity R410A [TR]

9.6 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant temperature [ºF] [max]

248 °F

Refrigerant temperature [ºF] [min]

-22 °F

Refrigerants

R134a; R22; R404A; R407C; R410A

SCIP dossier no.

d64be145-2cb1-4f9e-b131-1e4b19976626

SCIP dossier product name

Electric control valve body(2)

Serviceable

No

Step mode

2-phase full step

Total steps

480 (half steps)

Type

VKV

Type designation

VKV-32D38
