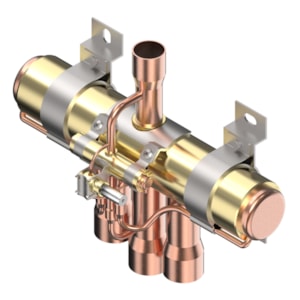

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS STF-6009G - C/N 061L1361

Gross weight

23 Kilogram

Net weight

0.21 Kilogram

Volume

71.675 Liter

EAN

5715162259047

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

CE

Cap condition 1 [°C]

0°C sub-cooling

Cap condition 2 [°C]

5°C sub-cooling

Cap R407C@Δp:0.1bar(cond1)[kW]

203.68 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

174.02 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

286.71 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

245.04 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

263.27 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

228.14 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

371.32 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

321.83 kW

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Design config. Style

G

Discharge conn size [in]

1 5/8

Discharge conn size [mm]

41.2 mm

Discharge conn type

MALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

2 5/8

Evap/cond conn size [mm]

67

Max. Leakage [cm³/min]

30000 cm³/min

Max. Working Pressure [bar]

49 bar

MaxOPD [bar]

31 bar

MaxOPD [psig]

450 psig

Medium temperature range [°C] [max]

160 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

320 °F

Medium temperature range [°F] [min]

-22 °F

MinODP [bar]

3 bar

MinODP [psi]

44 psi

Packing format

Single pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R290
R32
R407A
R407C
R410A
R448A
R449A
R452B
R454B
R454C
R1234yf
R1234ze
R404A
R452A
R513A

SCIP dossier no.

f8fe2fb6-0750-4373-b03a-5b5988b72210

SCIP dossier product name

Four-way valve(1)

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

2 5/8

Suction conn size [mm]

67 mm

Type

STF

Type designation

STF-6009G

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
