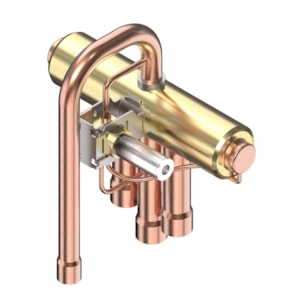

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS STF-H0167 - C/N 061L1348

Gross weight

0.236 Kilogram

Net weight

0.202 Kilogram

Volume

0.947 Liter

EAN

5715162259085

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

CE

Cap condition 1 [°C]

0°C sub-cooling

Cap condition 2 [°C]

5°C sub-cooling

Cap R407C@Δp:0.1bar(cond1)[kW]

4.27 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

3.65 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

6.01 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

5.14 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

5.52 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

4.78 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

7.79 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

6.75 kW

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Design config. Style

A

Discharge conn size [in]

5/16

Discharge conn size [mm]

8.1 mm

Discharge conn type

FEMALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

3/8

Evap/cond conn size [mm]

9,7

Max. Leakage [cm³/min]

1000 cm³/min

Max. Working Pressure [bar]

45 bar

MaxOPD [bar]

31 bar

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-22 °F

MinODP [bar]

3 bar

Packing format

Industrial pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

45 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R290
R32
R404A
R407A
R407C
R410A
R448A
R449A
R452B
R454B
R454C
R1234yf
R1234ze
R452A
R513A

SCIP dossier no.

f8fe2fb6-0750-4373-b03a-5b5988b72210

SCIP dossier product name

Four-way valve(1)

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

3/8

Suction conn size [mm]

9.7 mm

Type

STF

Type designation

STF-H0167

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
