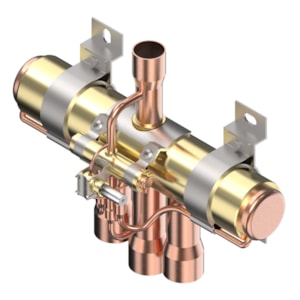

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS STF-5016G - C/N 061L1347

Gross weight

11.733 Kilogram

Net weight

3.3 Kilogram

Volume

38.54 Liter

EAN

5702424046552

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

CE; VDE

Cap condition 1 [°C]

0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat

Cap condition 2 [°C]

54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating

Cap R407C@Δp:0.1bar(cond1)[kW]

142.58 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

121.81 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

200.7 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

171.53 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

184.29 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

159.7 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

259.92 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

225.28 kW

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil

No

Comments

FOR CARRIER

Contain batteries

No

Design config. Style

G

Discharge conn size [in]

1 5/8

Discharge conn size [mm]

41.2 mm

Discharge conn type

MALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

2 1/8

Evap/cond conn size [mm]

54,4

Max. Leakage [cm³/min]

20000 cm³/min

Max. Working Pressure [bar]

49 bar

MaxOPD [bar]

31 bar

MaxOPD [psig]

450 psig

Medium temperature range [°C] [max]

160 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

320 °F

Medium temperature range [°F] [min]

-22 °F

MinODP [bar]

3 bar

MinODP [psi]

44 psi

Packing format

Single pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R22; R404A; R407C; R410A

SCIP dossier no.

f8fe2fb6-0750-4373-b03a-5b5988b72210

SCIP dossier product name

Four-way valve(1)

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

2 1/8

Suction conn size [mm]

54.4 mm

Type

STF

Type designation

STF-5016G

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
